Column

Arranges child controls vertically, optionally aligning and spacing them within the available space.

ft.Column(
    width=220,
    height=120,
    spacing=12,
    controls=[
        ft.Text("Daily planning", size=20, weight=ft.FontWeight.W_600),
        ft.Text("Review pull requests"),
        ft.Text("Ship release"),
    ],
)

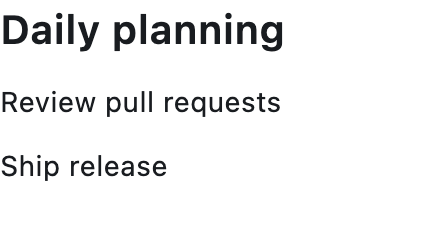

Column
Basic Column with Text controls

Inherits: LayoutControl, ScrollableControl, AdaptiveControl

Properties

  • alignment - How the child Controls should be placed vertically.
  • controls - A list of controls to display.
  • horizontal_alignment - Defines how the controls should be placed horizontally.
  • intrinsic_width - If True, the Column will be as wide as the widest child control.
  • run_alignment - How the runs should be placed in the cross-axis when wrap is True.
  • run_spacing - The spacing between runs when wrap is True.
  • spacing - Spacing between the controls.
  • tight - Determines how vertical space is allocated.
  • wrap - Whether the controls should wrap into additional columns (runs) when they don't fit in a single vertical column.

Examples​

Live example

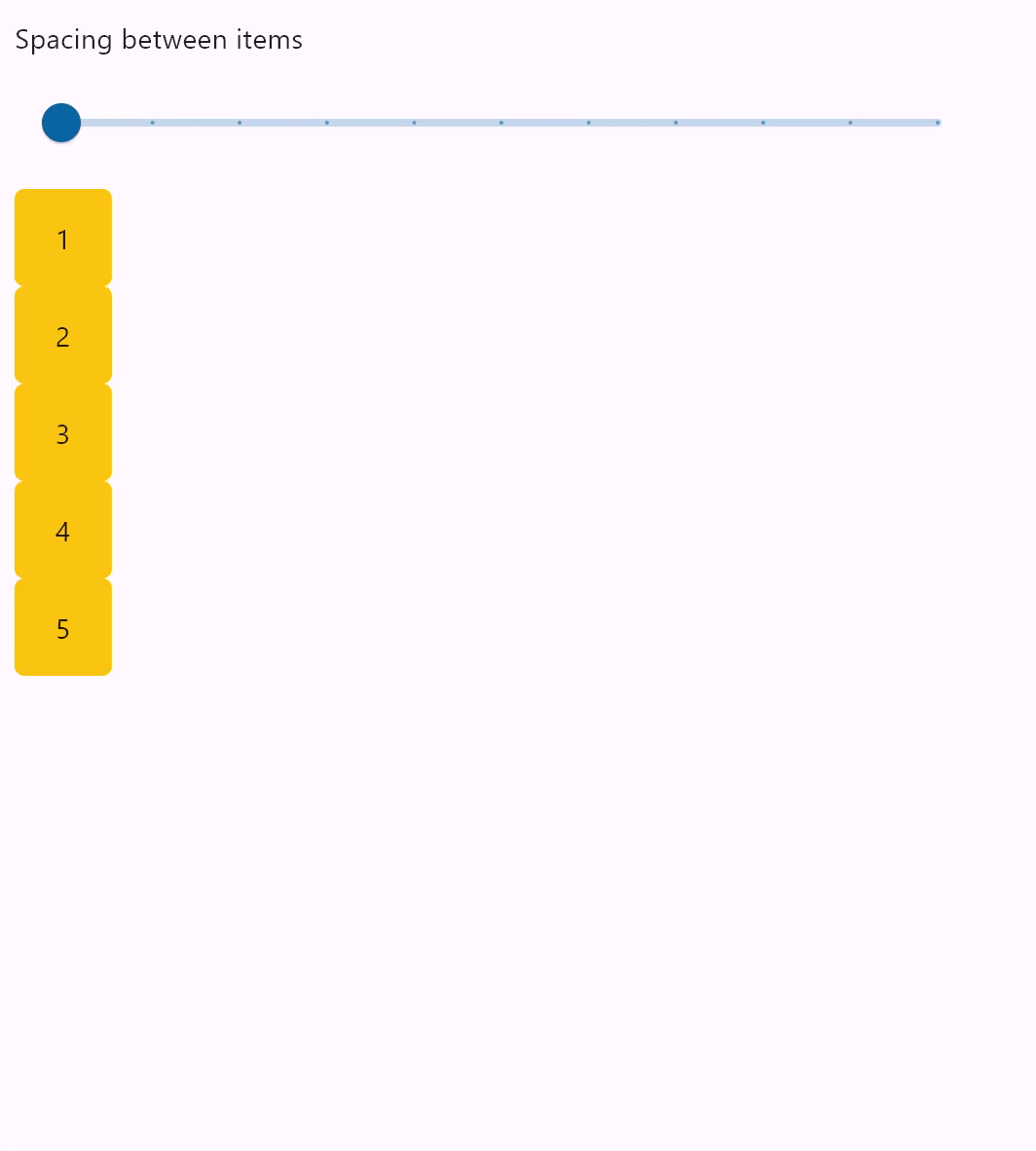

Column spacing​

import flet as ft


def main(page: ft.Page):
    def generate_items(count: int):
        """Generates a list of custom Containers with length `count`."""
        return [
            ft.Container(
                content=ft.Text(value=str(i)),
                alignment=ft.Alignment.CENTER,
                width=50,
                height=50,
                bgcolor=ft.Colors.AMBER,
                border_radius=ft.BorderRadius.all(5),
            )
            for i in range(1, count + 1)
        ]

    def handle_slider_change(e: ft.Event[ft.Slider]):
        """Updates the spacing between items based on slider value."""
        column.spacing = int(e.control.value)
        column.update()

    page.add(
        ft.SafeArea(
            content=ft.Column(
                controls=[
                    ft.Column(
                        controls=[
                            ft.Text("Spacing between items"),
                            ft.Slider(
                                min=0,
                                max=100,
                                divisions=10,
                                value=0,
                                label="{value}",
                                width=500,
                                on_change=handle_slider_change,
                            ),
                        ]
                    ),
                    column := ft.Column(spacing=0, controls=generate_items(5)),
                ]
            )
        ),
    )


if __name__ == "__main__":
    ft.run(main)
spacing

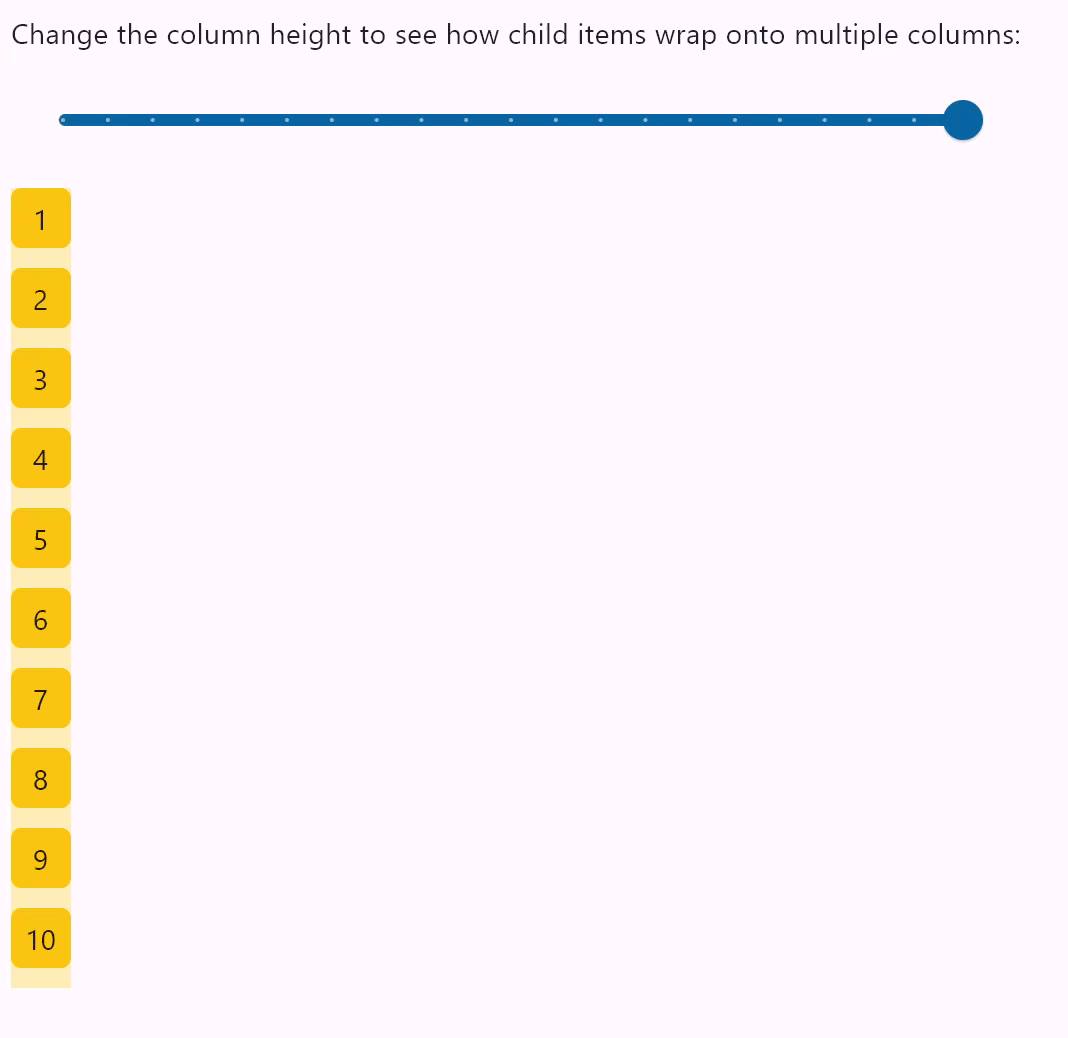

Column wrapping​

import flet as ft

HEIGHT = 400


def main(page: ft.Page):
    def items(count: int):
        return [
            ft.Container(
                content=ft.Text(value=str(i)),
                alignment=ft.Alignment.CENTER,
                width=30,
                height=30,
                bgcolor=ft.Colors.AMBER,
                border_radius=ft.BorderRadius.all(5),
            )
            for i in range(1, count + 1)
        ]

    def handle_slider_change(e: ft.Event[ft.Slider]):
        col.height = float(e.control.value)
        col.update()

    page.add(
        ft.SafeArea(
            content=ft.Column(
                controls=[
                    ft.Column(
                        controls=[
                            ft.Text(
                                "Change the column height to see how child items "
                                "wrap onto multiple columns:"
                            ),
                            ft.Slider(
                                min=0,
                                max=HEIGHT,
                                divisions=20,
                                value=HEIGHT,
                                label="{value}",
                                width=500,
                                on_change=handle_slider_change,
                            ),
                        ]
                    ),
                    ft.Container(
                        bgcolor=ft.Colors.TRANSPARENT,
                        content=(
                            col := ft.Column(
                                wrap=True,
                                spacing=10,
                                run_spacing=10,
                                controls=items(10),
                                height=HEIGHT,
                            )
                        ),
                    ),
                ]
            )
        ),
    )


if __name__ == "__main__":
    ft.run(main)
wrap

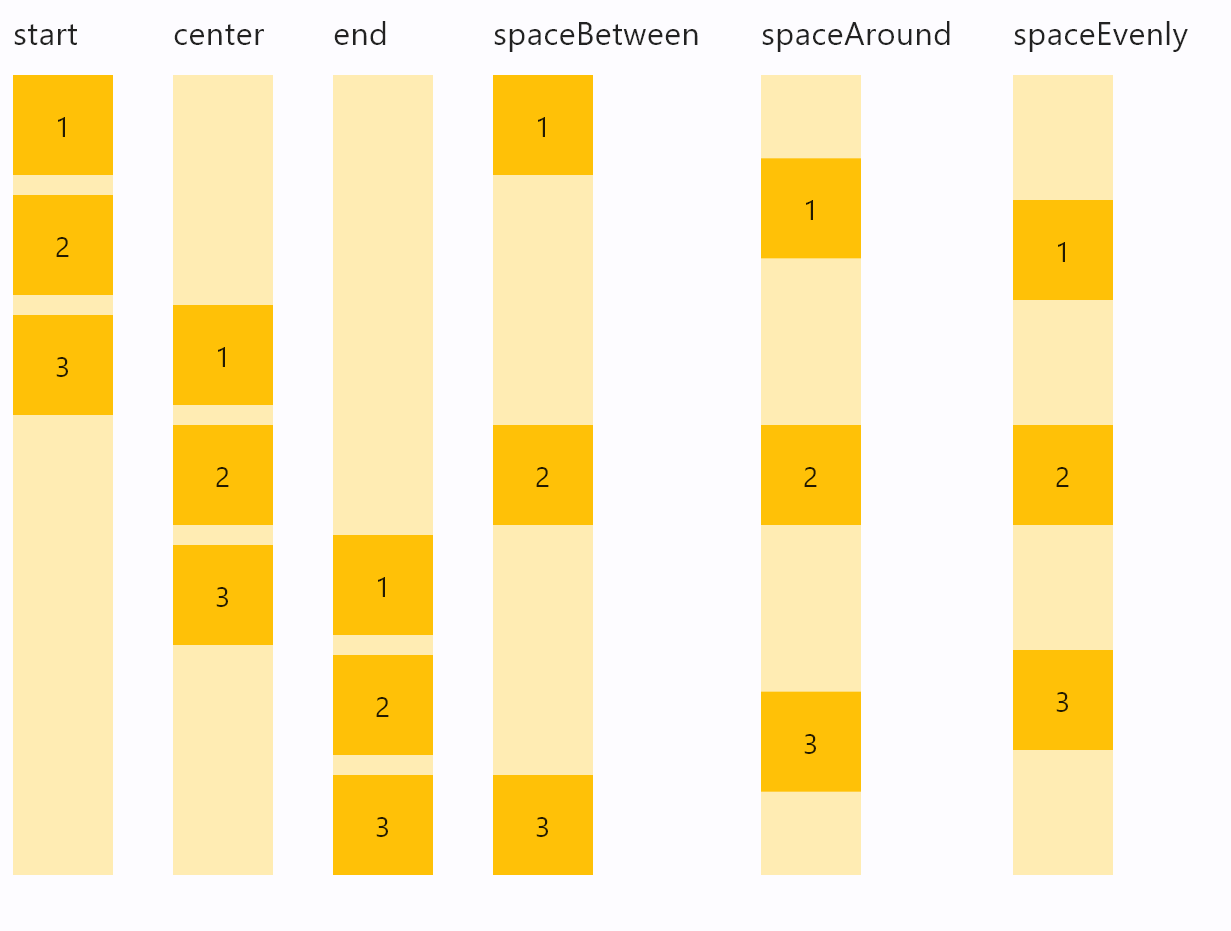

Column vertical alignments​

import flet as ft


@ft.control
class ColumnFromVerticalAlignment(ft.Column):
    alignment: ft.MainAxisAlignment = ft.MainAxisAlignment.START

    def init(self):
        self.controls = [
            ft.Text(str(self.alignment), size=10),
            ft.Container(
                content=ft.Column(self.generate_items(3), alignment=self.alignment),
                bgcolor=ft.Colors.AMBER_100,
                height=400,
            ),
        ]

    @staticmethod
    def generate_items(count: int):
        """Generates a list of custom Containers with length `count`."""
        return [
            ft.Container(
                content=ft.Text(value=str(i)),
                alignment=ft.Alignment.CENTER,
                width=50,
                height=50,
                bgcolor=ft.Colors.AMBER_500,
            )
            for i in range(1, count + 1)
        ]


def main(page: ft.Page):
    page.add(
        ft.SafeArea(
            content=ft.Row(
                spacing=30,
                alignment=ft.MainAxisAlignment.START,
                scroll=ft.ScrollMode.AUTO,
                controls=[
                    ColumnFromVerticalAlignment(alignment=ft.MainAxisAlignment.START),
                    ColumnFromVerticalAlignment(alignment=ft.MainAxisAlignment.CENTER),
                    ColumnFromVerticalAlignment(alignment=ft.MainAxisAlignment.END),
                    ColumnFromVerticalAlignment(
                        alignment=ft.MainAxisAlignment.SPACE_BETWEEN
                    ),
                    ColumnFromVerticalAlignment(
                        alignment=ft.MainAxisAlignment.SPACE_AROUND
                    ),
                    ColumnFromVerticalAlignment(
                        alignment=ft.MainAxisAlignment.SPACE_EVENLY
                    ),
                ],
            )
        )
    )


if __name__ == "__main__":
    ft.run(main)
alignment

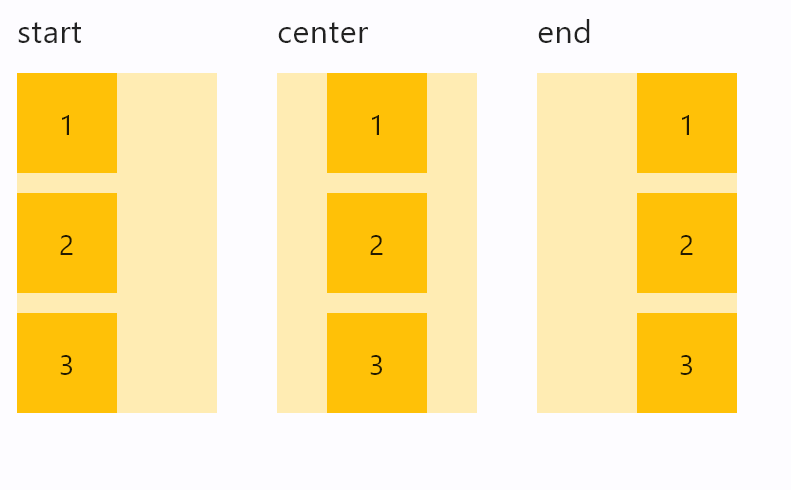

Column horizontal alignments​

import flet as ft


@ft.control
class ColumnFromHorizontalAlignment(ft.Column):
    alignment: ft.CrossAxisAlignment = ft.CrossAxisAlignment.START

    def init(self):
        self.controls = [
            ft.Text(str(self.alignment), size=16),
            ft.Container(
                bgcolor=ft.Colors.AMBER_100,
                width=100,
                content=ft.Column(
                    controls=self.generate_items(3),
                    alignment=ft.MainAxisAlignment.START,
                    horizontal_alignment=self.alignment,
                ),
            ),
        ]

    @staticmethod
    def generate_items(count: int):
        """Generates a list of custom Containers with length `count`."""
        return [
            ft.Container(
                content=ft.Text(value=str(i)),
                alignment=ft.Alignment.CENTER,
                width=50,
                height=50,
                bgcolor=ft.Colors.AMBER_500,
            )
            for i in range(1, count + 1)
        ]


def main(page: ft.Page):
    page.add(
        ft.SafeArea(
            content=ft.Row(
                spacing=30,
                alignment=ft.MainAxisAlignment.START,
                controls=[
                    ColumnFromHorizontalAlignment(
                        alignment=ft.CrossAxisAlignment.START
                    ),
                    ColumnFromHorizontalAlignment(
                        alignment=ft.CrossAxisAlignment.CENTER
                    ),
                    ColumnFromHorizontalAlignment(alignment=ft.CrossAxisAlignment.END),
                ],
            )
        )
    )


if __name__ == "__main__":
    ft.run(main)
horizontal-alignment

Infinite scrolling​

This example demonstrates adding of list items on-the-fly, as user scroll to the bottom, creating the illusion of infinite list:

import threading

import flet as ft


class State:
    i = 0


s = State()
sem = threading.Semaphore()


def main(page: ft.Page):
    def on_scroll(e: ft.OnScrollEvent):
        if e.pixels >= e.max_scroll_extent - 100 and sem.acquire(blocking=False):
            try:
                for _i in range(0, 10):
                    cl.controls.append(ft.Text(f"Text line {s.i}", key=str(s.i)))
                    s.i += 1
                cl.update()
            finally:
                sem.release()

    cl = ft.Column(
        spacing=10,
        height=200,
        width=200,
        scroll=ft.ScrollMode.ALWAYS,
        scroll_interval=0,
        on_scroll=on_scroll,
    )
    for _i in range(0, 50):
        cl.controls.append(ft.Text(f"Text line {s.i}", key=str(s.i)))
        s.i += 1

    page.add(ft.SafeArea(content=ft.Container(cl, border=ft.Border.all(1))))


if __name__ == "__main__":
    ft.run(main)

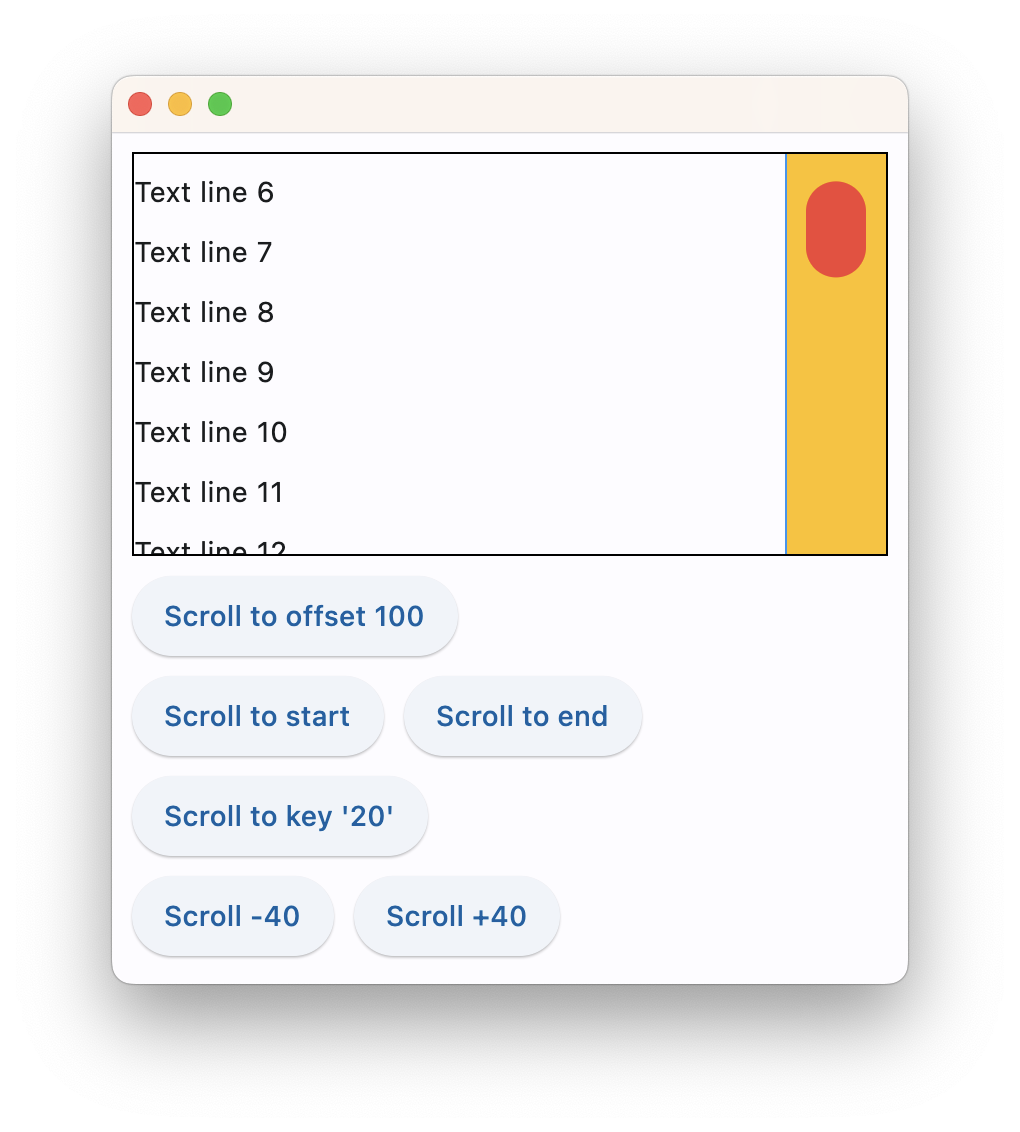

Scrolling programmatically​

This example shows how to use scroll_to() to programmatically scroll a column:

import flet as ft


def main(page: ft.Page):
    column = ft.Column(
        spacing=10,
        height=200,
        width=float("inf"),
        scroll=ft.ScrollMode.ALWAYS,
        controls=[
            ft.Text(f"Text line {i}", key=ft.ScrollKey(i)) for i in range(0, 100)
        ],
    )

    async def scroll_to_offset(e):
        await column.scroll_to(offset=500, duration=1000)

    async def scroll_to_start(e):
        await column.scroll_to(offset=0, duration=1000)

    async def scroll_to_end(e):
        await column.scroll_to(
            offset=-1, duration=2000, curve=ft.AnimationCurve.EASE_IN_OUT
        )

    async def scroll_to_key(e):
        await column.scroll_to(scroll_key="20", duration=1000)

    async def scroll_to_delta(e):
        await column.scroll_to(delta=100, duration=200)

    async def scroll_to_minus_delta(e):
        await column.scroll_to(delta=-100, duration=200)

    page.add(
        ft.SafeArea(
            content=ft.Column(
                controls=[
                    ft.Container(content=column, border=ft.Border.all(1)),
                    ft.Button("Scroll to offset 500", on_click=scroll_to_offset),
                    ft.Row(
                        controls=[
                            ft.Button("Scroll -100", on_click=scroll_to_minus_delta),
                            ft.Button("Scroll +100", on_click=scroll_to_delta),
                        ]
                    ),
                    ft.Button("Scroll to key '20'", on_click=scroll_to_key),
                    ft.Row(
                        controls=[
                            ft.Button("Scroll to start", on_click=scroll_to_start),
                            ft.Button("Scroll to end", on_click=scroll_to_end),
                        ]
                    ),
                ]
            )
        ),
    )


if __name__ == "__main__":
    ft.run(main)
programmatic-scroll

Properties​

alignmentclass-attributeinstance-attribute​

alignment: MainAxisAlignment = MainAxisAlignment.START

How the child Controls should be placed vertically.

controlsclass-attributeinstance-attribute​

controls: list[Control] = field(default_factory=list)

A list of controls to display.

horizontal_alignmentclass-attributeinstance-attribute​

horizontal_alignment: CrossAxisAlignment = CrossAxisAlignment.START

Defines how the controls should be placed horizontally.

intrinsic_widthclass-attributeinstance-attribute​

intrinsic_width: bool = False

If True, the Column will be as wide as the widest child control.

run_alignmentclass-attributeinstance-attribute​

run_alignment: MainAxisAlignment = MainAxisAlignment.START

How the runs should be placed in the cross-axis when wrap is True.

run_spacingclass-attributeinstance-attribute​

run_spacing: Number = 10

The spacing between runs when wrap is True.

spacingclass-attributeinstance-attribute​

spacing: Number = 10

Spacing between the controls.

It is applied only when alignment is MainAxisAlignment.START, MainAxisAlignment.END or MainAxisAlignment.CENTER.

tightclass-attributeinstance-attribute​

tight: bool = False

Determines how vertical space is allocated.

If False (default), children expand to fill the available vertical space. If True, only the minimum vertical space required by the children is used.

wrapclass-attributeinstance-attribute​

wrap: bool = False

Whether the controls should wrap into additional columns (runs) when they don't fit in a single vertical column.
